ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender – 4K up to 100M

Model: CE920

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender provides long-distance extension of DisplayPort video, USB, stereo audio, RS-232 and Ethernet* signals over a single Cat6/Cat6a cable. It supports 4K video transmission up to 100 meters and Full HD 1080p up to 150 meters in Long Reach Mode, making it suitable for control rooms, data centers, industrial environments, medical facilities and remote workstation applications.

Key Features

• 4K DisplayPort Extension up to 100M – Supports resolutions up to 4096 × 2160 / 3840 × 2160 at 30Hz (4:4:4) using Cat6/Cat6a or ATEN 2L-2910 cable.
• HDBaseT™ 2.0 Technology – Extends video, USB, audio, RS-232 and supported Ethernet signals through a single network cable.
• Long Reach Mode up to 150M – Extends Full HD 1080p signals up to 150 meters.
• USB 2.0 Full Speed – Allows remote keyboard, mouse and compatible USB peripheral connectivity.
• Stereo Audio Support – Individual 2-channel stereo audio connections for professional AV applications.
• EDID Buffer – Helps provide reliable display detection and smooth system startup.
• HDCP Compatible

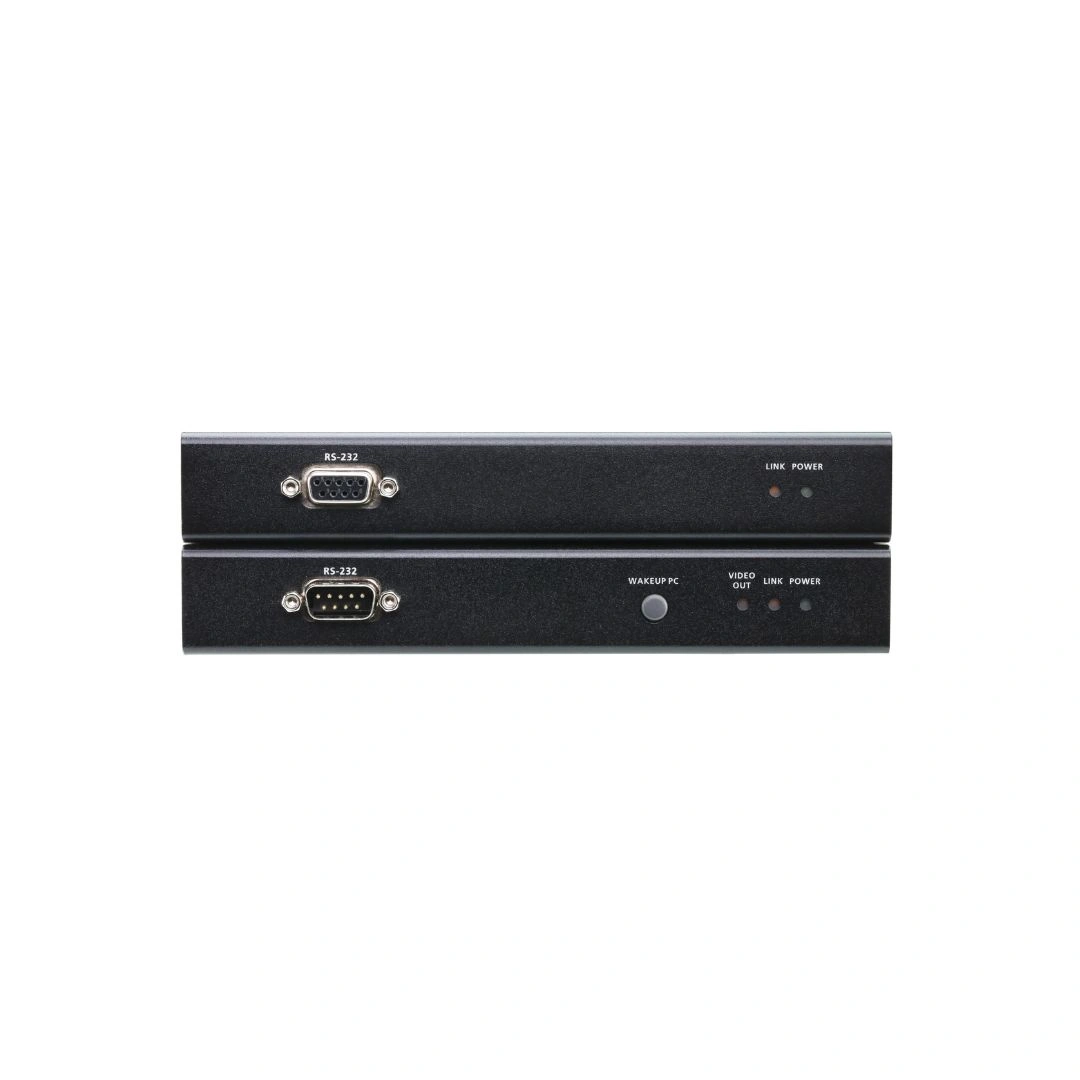

• RS-232 Extension – Suitable for serial control and professional system integration.
• Built-in ESD Protection – 8 kV contact / 15 kV air discharge protection.
• Metal Housing & Rack-Mountable Design

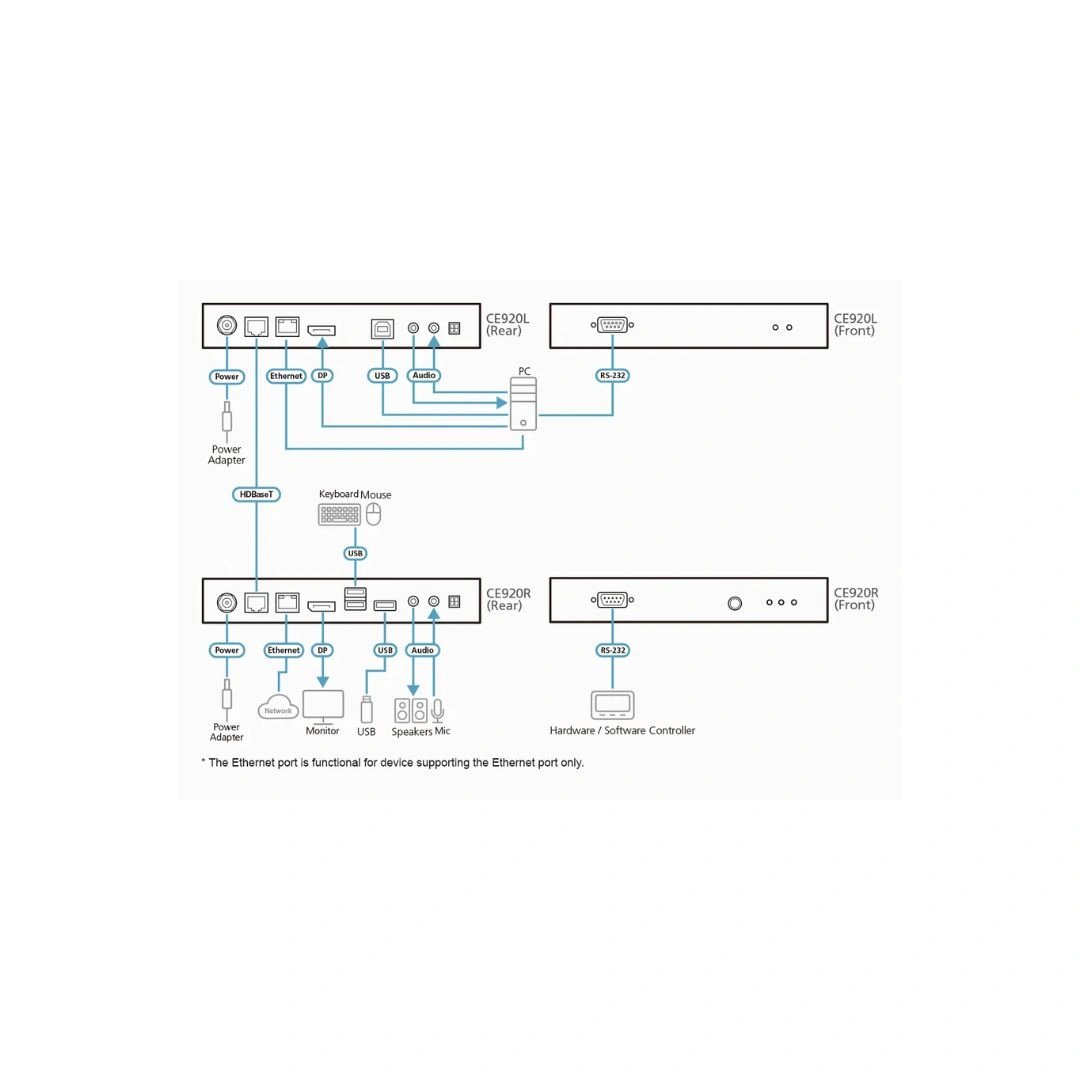

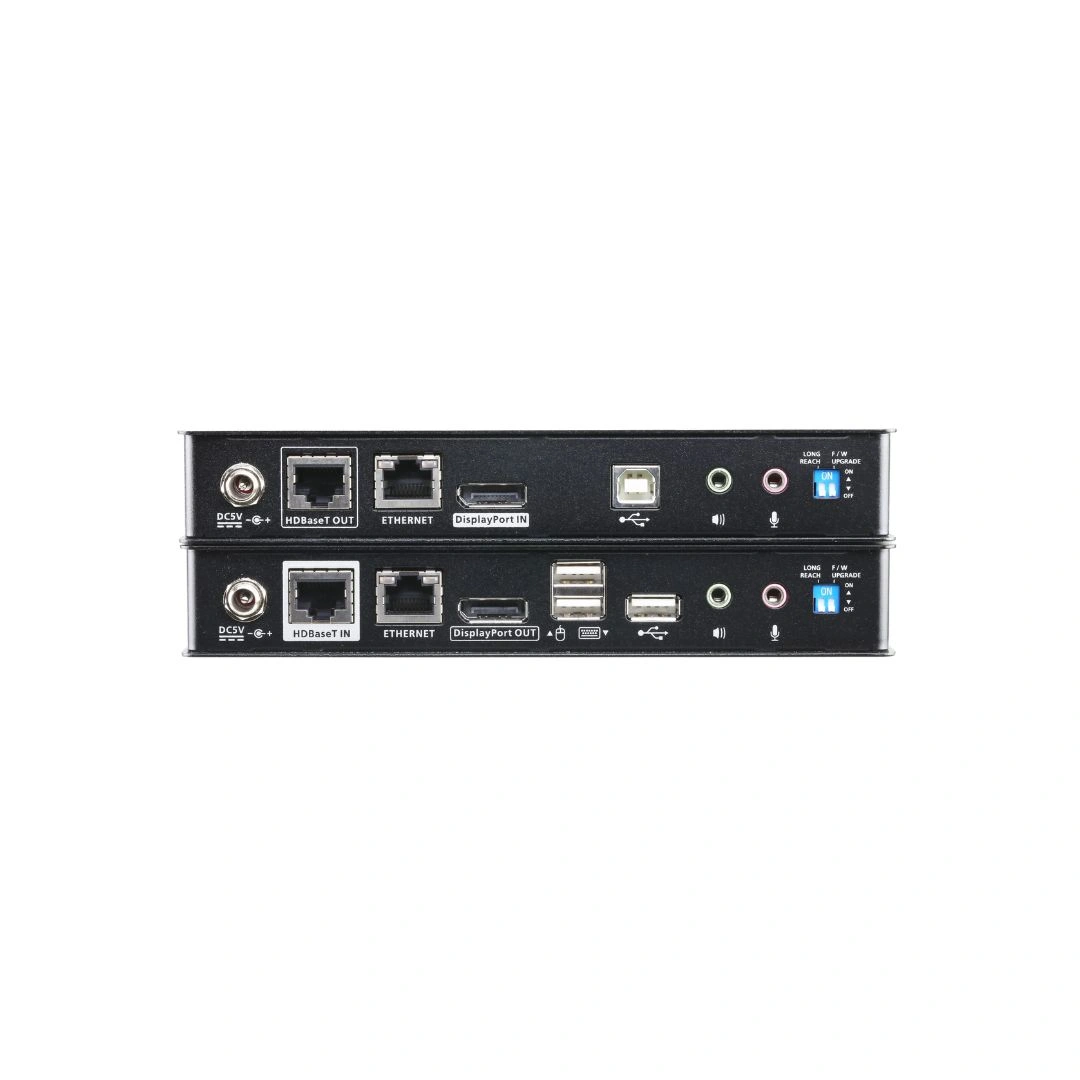

• Local + Remote Units – CE920L transmitter and CE920R receiver.

Important: The CE920-AT supports Ethernet functionality, while the CE920-ATA version does not.

Applications

Ideal for control rooms, command centers, server rooms, industrial workstations, medical facilities, security monitoring, transportation control centers and professional AV installations where the computer needs to be located away from the user console.

Package Contents

The CE920 set includes the local and remote units along with DisplayPort, USB and audio connection accessories, two power adapters and mounting kits.
