KUWES LC/APC Singlemode Fiber Optic Pigtail 1M – 9/125µm LSZH
Estimated Delivery: 2–3 Business Days (UAE)
-
AED22.00AED30.00 -
AED20.00
AED35.00 -
AED48.00
AED50.00
Reviews & Ratings
Frequently Asked Questions

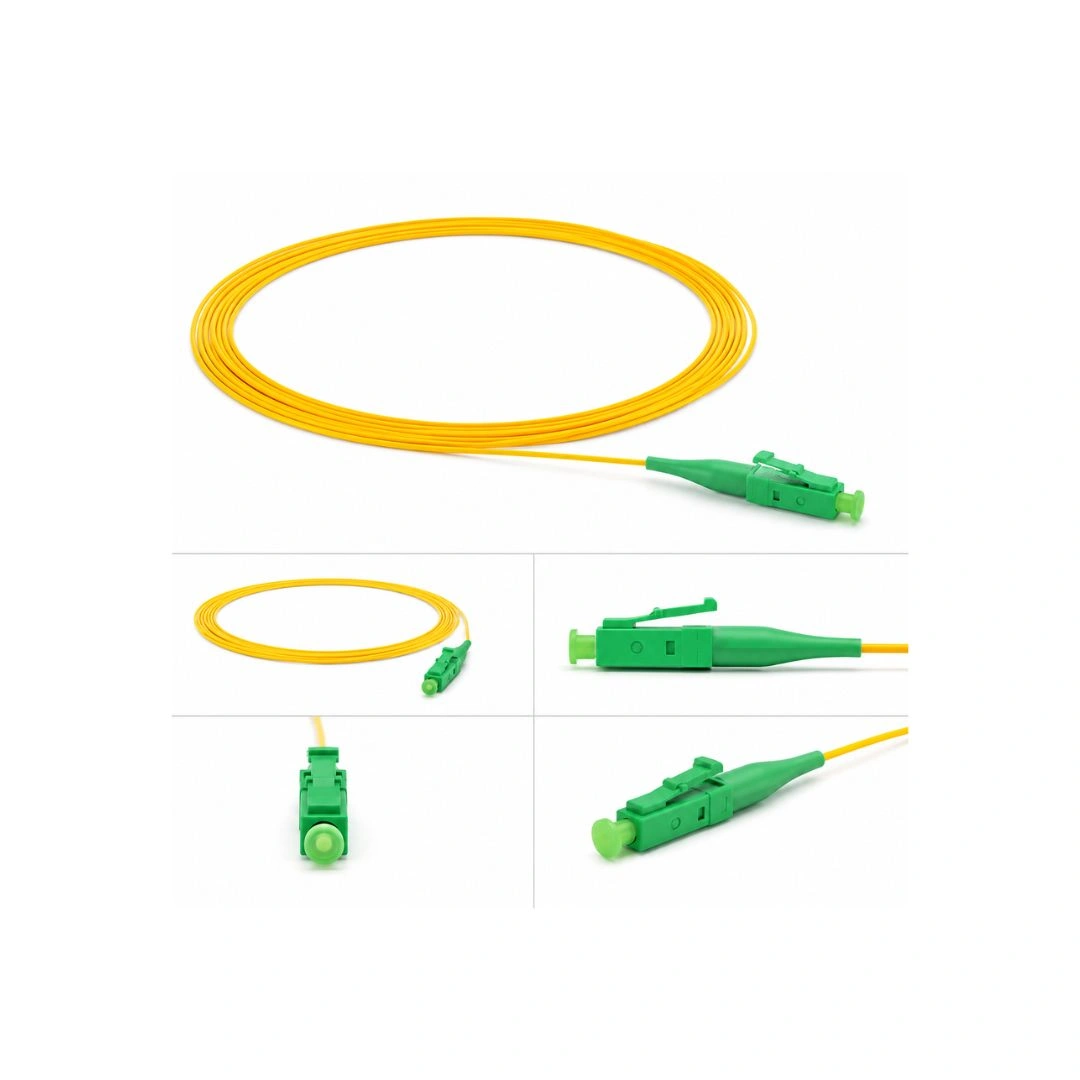

The KUWES LC/APC Simplex 9/125µm Singlemode Pigtail (1 Meter) is a premium-grade fiber optic pigtail designed for professional fusion splicing in FTTH, GPON, CATV, telecommunications, and enterprise fiber networks. Featuring a precision LC/APC (Angled Physical Contact) connector, OS2 9/125µm singlemode fiber, and a 0.9mm LSZH (Low Smoke Zero Halogen) jacket, it delivers outstanding optical performance with ultra-low back reflection and minimal insertion loss.
Manufactured in Taiwan using high-quality zirconia ceramic ferrules, every KUWES fiber pigtail is factory tested to ensure reliable signal transmission, long service life, and consistent performance for high-speed optical communication systems.
Key Features
- LC/APC Simplex Fiber Optic Pigtail
- OS2 9/125µm Singlemode Fiber
- 1 Meter Length
- Green LC/APC Connector
- 0.9mm LSZH Jacket
- Low Insertion Loss
- Ultra-Low Back Reflection
- Precision Zirconia Ceramic Ferrule
- Factory Tested for Optical Performance
- Ideal for Fusion Splicing
- RoHS Compliant
- Made in Taiwan
Technical Specifications
| Specification | Details |
|---|---|
| Brand | KUWES |
| Connector Type | LC/APC |
| Fiber Type | Singlemode (OS2) |
| Core / Cladding | 9/125µm |
| Construction | Simplex |
| Cable Length | 1 Meter |
| Cable Diameter | 0.9mm |
| Jacket Material | LSZH |
| Cable Color | Yellow |
| Connector Color | Green |
| Polish Type | APC (8° Angled Polish) |
| Ferrule Material | Zirconia Ceramic |
| Insertion Loss | ≤0.3 dB (Typical) |
| Return Loss | ≥60 dB |
| Operating Wavelength | 1310nm / 1550nm |
| Compliance | RoHS |
| Country of Origin | Taiwan |
Applications
- FTTH (Fiber to the Home)
- GPON Networks
- FTTx Infrastructure
- Data Centers
- Optical Distribution Frames (ODF)
- CATV Systems
- Fiber Patch Panels
- ISP Networks
- Telecommunications
- Enterprise Fiber Networks
Benefits
- Superior optical signal quality
- Extremely low return loss with APC polishing
- Stable long-distance transmission
- Reliable fusion splicing performance
- Flame-retardant LSZH jacket for indoor environments
- Long-lasting and durable construction
Why Choose KUWES?
- Premium Taiwan manufacturing
- High-precision LC/APC connector
- Factory-tested optical quality
- Consistent low-loss performance
- Designed for professional fiber optic installations
- Trusted by telecom contractors, ISPs, and data center professionals
