Part Number: LA-AOC-CCFF-15
Series: LA-AOC-CCFF Series

Short Description

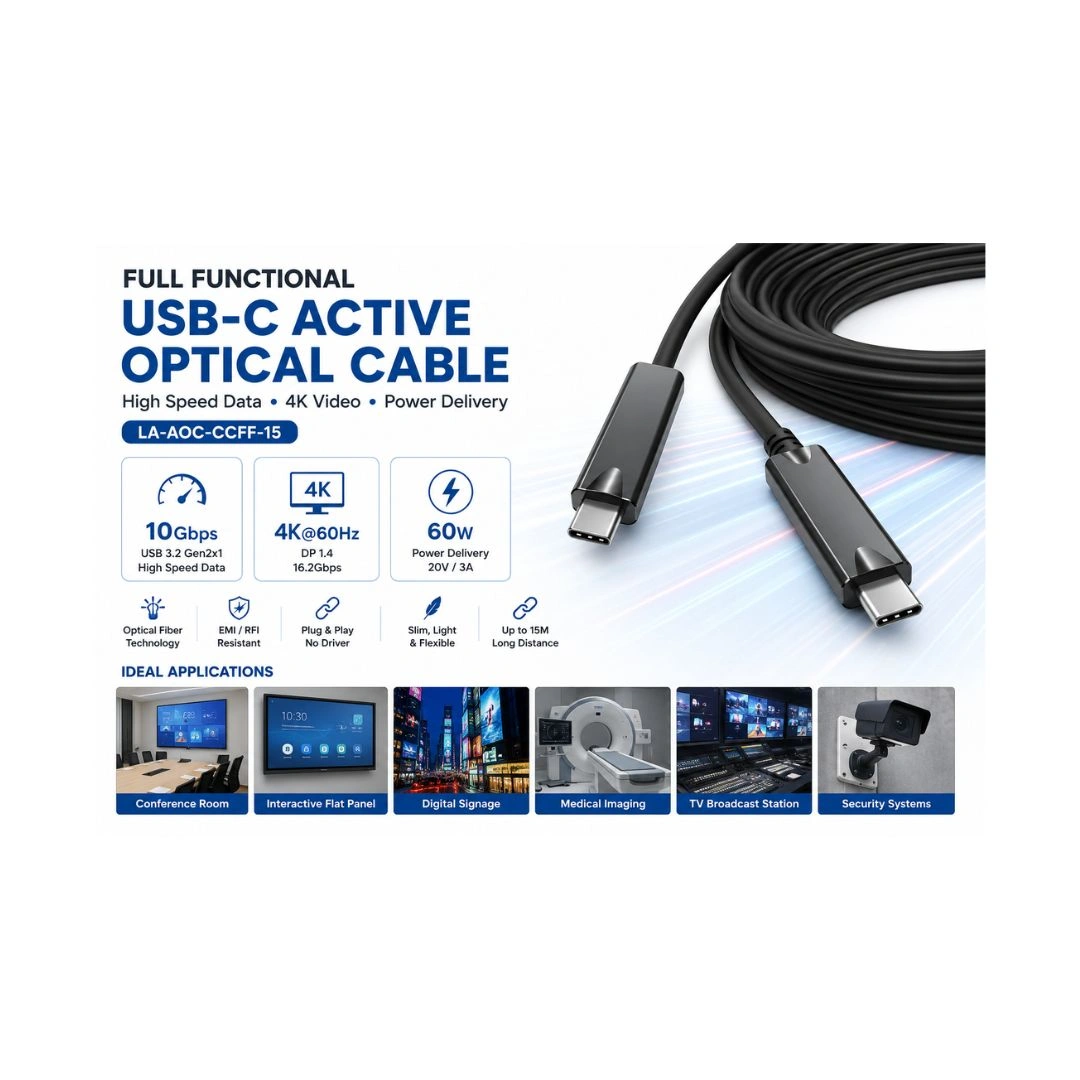

The LinkAura LA-AOC-CCFF-15 is a 15-meter full-functional USB Type-C to Type-C Active Optical Cable (AOC) designed to carry high-speed data, DisplayPort video and USB Power Delivery over long distances.

Supporting USB 3.2 Gen 2x1 up to 10Gbps, DP 1.4 with 4K@60Hz, and 60W PD (20V/3A), it is ideal for interactive flat panels, conference rooms, digital signage, professional AV, medical imaging and other installations requiring reliable long-distance USB-C connectivity.

Key Features

• USB Type-C to Type-C Active Optical Cable
• 15 Meter cable length
• USB 3.2 Gen 2x1 – up to 10Gbps
• Supports USB 2.0 / USB 1.1
• Supports DisplayPort 1.4
• Video resolution up to 4K @ 60Hz
• DP transmission bandwidth up to 16.2Gbps
• Supports USB Power Delivery up to 60W
• PD specification: 20V / 3A Max
• Plug & Play – no driver required
• High resistance to EMI & RFI
• Optical-fiber design for reliable long-distance signal transmission
• Slimmer, lighter and more flexible than traditional long-distance copper cables
• Specially designed for Interactive Flat Panels (IFP)

Data + Video + Power

One long-distance USB-C connection provides three essential functions:

10Gbps Data | 4K@60Hz Video | 60W Power Delivery

This makes the LA-AOC-CCFF-15 particularly useful where the source device and USB-C display or peripheral need to be positioned far apart without relying on a conventional long copper USB-C cable.

Applications

Suitable for Interactive Flat Panels, Digital Signage, LED Signboards, Conference Rooms, Medical Imaging Equipment, Security Systems, TV Broadcast Stations, Home Theater and Professional AV installations.

It can also be used with compatible projectors, computers, displays, DVR systems, game consoles and other USB-C equipment where the required USB-C functions are supported by both connected devices.
