Product Description:
NF-IPC725 12-in-1 CCTV & IP Camera Tester is a professional installation and maintenance tool for CCTV, IP camera, analog camera and network wiring projects. It combines ONVIF testing, CVBS analog video preview, webcam testing, Hikvision SADP scan, IP scan, ping test, network cable sorting, TDR test and PoE power supply in one compact device.

Bullet Points:

1. 12-in-1 CCTV Testing Tool – Combines multiple CCTV, IP camera and network testing functions in one device, reducing the need to carry separate tools.

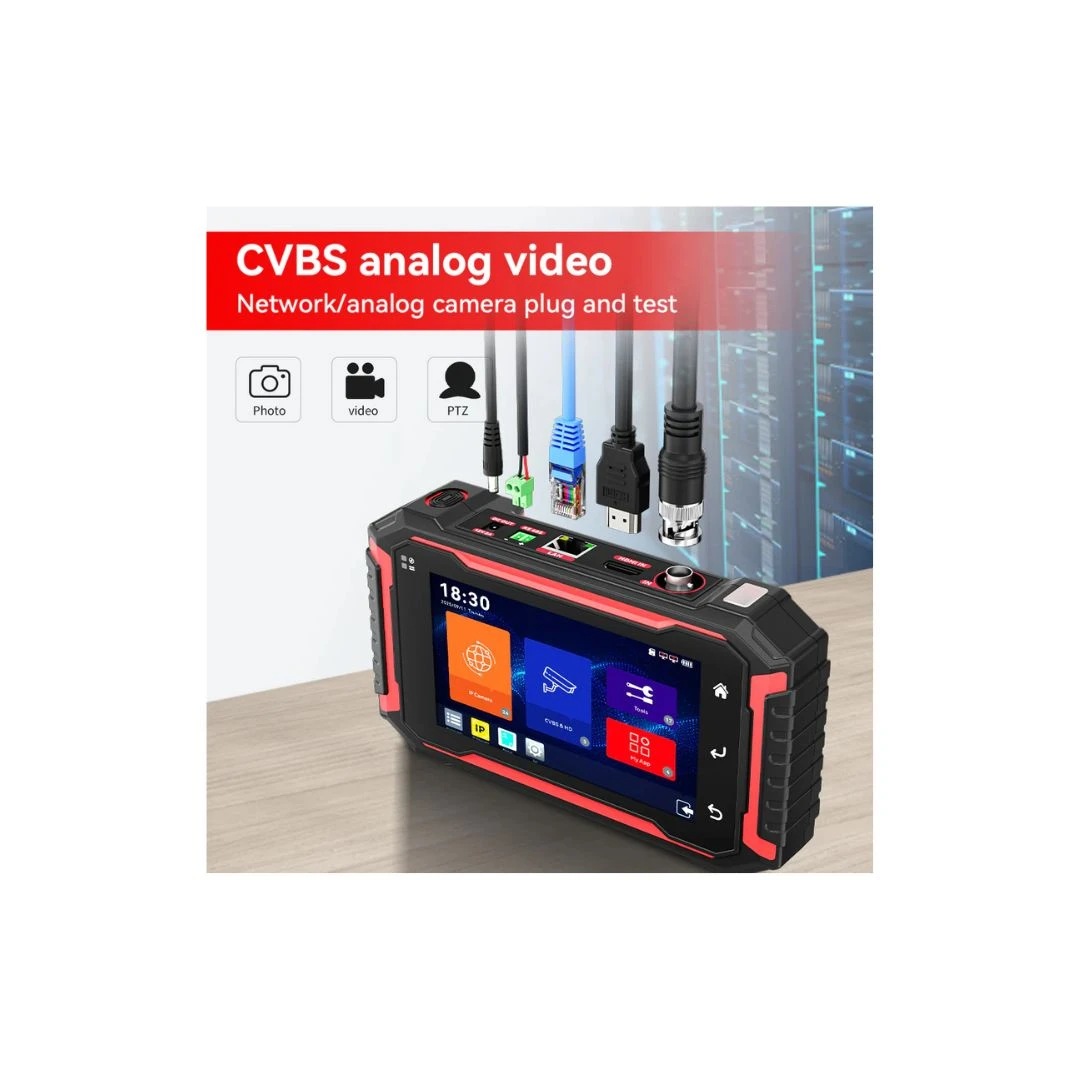

2. CVBS Analog Video Test – Supports CVBS analog camera input for direct video preview and parameter adjustment, suitable for older CCTV systems and hybrid installations.
3. IP Camera Test with ONVIF Support – Detects ONVIF-compatible IP cameras, supports RTSP video preview, IP modification and camera configuration.
4. Speedy ONVIF Detection – Quickly scans ONVIF devices and provides direct access to video streams and camera settings, helping reduce installation time.
5. Webcam Test Function – Allows direct viewing of camera images from supported webcam devices.
6. Hikvision SADP Support – Scans the network for Hikvision devices and helps identify device status, IP address, serial number and activation details.
7. IP Scan & Ping Tools – Built-in network diagnostic tools for checking IP addresses and network connectivity.
8. Network Cable Sorting & TDR Test – Tests network cable connection status, cable length, attenuation, quality, reflectivity, impedance and other cable parameters.
9. 5.5-Inch HD Touchscreen Display – 1920×1080 high-definition screen for clearer image preview, focus adjustment, alignment and color checking.
10. Wide Application – Suitable for CCTV installation, security surveillance systems, network wiring, engineering projects and smart city applications.
